Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover

    Buy cheap Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover from wholesalers

    Buy cheap Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover from wholesalers
    • Buy cheap Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover from wholesalers

    Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover

    Ask Lasest Price
    Brand Name : Hyunvan
    Model Number : FC-M
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20SET PER MONTH
    Delivery Time : 2 working days
    • Product Details
    • Company Profile

    Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover

    Metal Material Fiber Laser Marking Machine Mini Type With Protective Cover

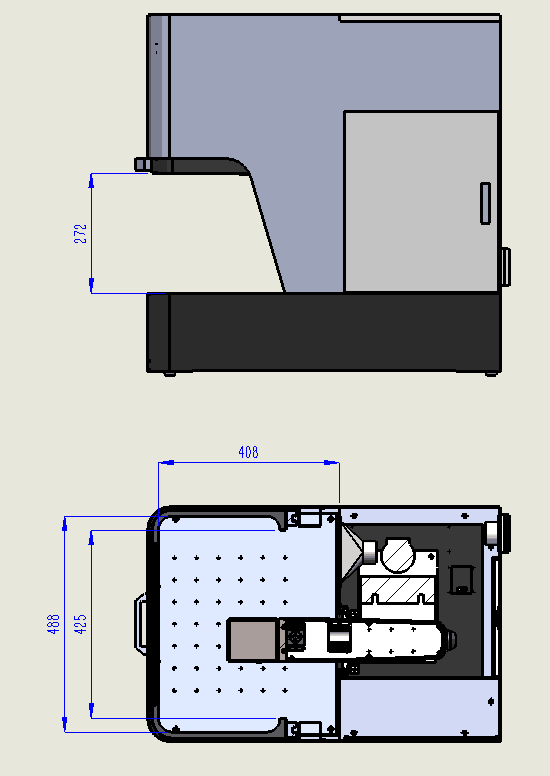

    Mini type, in small size, no need to take much floor room, also can save air freight for customers.
    • Main feature is with protective cover on whole machine, very safe and human, can protect workers from the laser. Popular among market.

    Application:
    • Mini type fiber laser marking machine for a wide range of application, mainly for all kinds of metal and most plastic.

    • Especially suitable for hardware tools, kitchenware knifes, plastic products, metal jewelry, buttons, integrate circuits, frames, plumbing fittings and other products marking. Clear, beautiful and permanent marking.


    • Technical Parameters

      Laser SourceIPG, Germany brand
      Raycus, best brand in China
      Output Power10w/20w/30w/50w
      Wavelength1064nm
      Beam Quality<2
      Repeat Frequency10khz— 100khz
      Pulse Energy2mJ
      Beam Divergence-0.3 to +0.3mrad
      Laser ClassI
      Resolution18μ
      Repeatablility50μ
      Marking Scope110mmx 110mm/ 175mmx 175mm (optional 200*200mm, 300*300mm)
      Linear Speed800 character/ s
      Marking Linear Speed≤12,000mm/s
      Marking DepthMax. 1.0- 1.5mm (hard steel)
      Min. Line Width0.012mm
      Min. Character Size0.15mm
      Repeat Accuracy±0.003mm
      Input Power0.5kw
      Electrical Source220V / Single-Phase Circuit / 50/60Hz /4A

    Advantages:
    Compared with traditional mechanical engraving, chemical etching, screen printing, ink printing, etc., laser marking has low cost, high flexibility and environmental protection; it can be controlled by computer system, and the laser produces a strong permanent mark on the surface of the workpiece. Sex is its outstanding feature.
    A. Non-contact: Laser marking is processed by non-mechanical "light knife", which can print marks on any regular or irregular surface, and the workpiece will not generate internal stress after marking, ensuring the original accuracy of the workpiece. No corrosion on the working surface, no “knife” wear, no toxicity, no pollution.
    B. Permanent: If the mark does not fade due to environmental relationships (touch, acid and reducing gases, high temperatures, low temperatures, etc.).
    C. High precision of engraving: The engraving of the laser marking machine is fine, and the minimum line width can reach 0.04mm. The mark is clear, long lasting and beautiful. Laser marking can meet the need to print large amounts of data on very small plastic parts. For example, two-dimensional bar codes that require more precision and higher definition can be printed, which is more competitive in the market than embossing or jet marking.
    D. Low operating cost: the marking speed is fast and the marking is formed once, the energy consumption is small, and the running cost is low. Although the laser marking machine's equipment investment is larger than conventional marking equipment, the use of laser marking machines is much lower in terms of operating costs.
    E. High processing efficiency: The laser beam under computer control can move at high speed (speed up to 5~7 m/s), and the marking process can be completed in a few seconds.
    F. Anti-counterfeiting: Marks engraved with laser marking technology are not easy to imitate and change, and have a strong degree of anti-counterfeiting to a certain extent.

    Application:


    It is suitable for Craft gifts, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, medicine packaging, printing plate, shell plate etc. With Keyboard Laser marker,Glass laser marker, Arts laser marker, bath ware laser marker, building ceramics, beverage packaging, textile cutting, rubber products, shell plate, electronic components, leather and other industries.
