    CNC Portable Fiber Laser Engraving Machine Sino Galvo Metal Marking Machine

    Ask Lasest Price
    Brand Name : Hyunvan
    Model Number : FC-M
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20SET PER MONTH
    Delivery Time : 2 working days
    • Product Details
    • Company Profile

    CNC Portable Fiber Laser Engraving Machine Sino Galvo Metal Marking Machine

    CNC Portable Fiber Laser Engraving Machine Sino Galvo Metal Marking Machine


    Mini type, in small size, no need to take much floor room, also can save air freight for customers.
    • Main feature is with protective cover on whole machine, very safe and human, can protect workers from the laser. Popular among market.

    Application:
    • Mini type fiber laser marking machine for a wide range of application, mainly for all kinds of metal and most plastic.

    • Especially suitable for hardware tools, kitchenware knifes, plastic products, metal jewelry, buttons, integrate circuits, frames, plumbing fittings and other products marking. Clear, beautiful and permanent marking.


    • Technical Parameters

      Laser SourceIPG, Germany brand
      Raycus, best brand in China
      Output Power10w/20w/30w/50w
      Wavelength1064nm
      Beam Quality<2
      Repeat Frequency10khz— 100khz
      Pulse Energy2mJ
      Beam Divergence-0.3 to +0.3mrad
      Laser ClassI
      Resolution18μ
      Repeatablility50μ
      Marking Scope110mmx 110mm/ 175mmx 175mm (optional 200*200mm, 300*300mm)
      Linear Speed800 character/ s
      Marking Linear Speed≤12,000mm/s
      Marking DepthMax. 1.0- 1.5mm (hard steel)
      Min. Line Width0.012mm
      Min. Character Size0.15mm
      Repeat Accuracy±0.003mm
      Input Power0.5kw
      Electrical Source220V / Single-Phase Circuit / 50/60Hz /4A

    Features:

    1. It seldom has a screw loose and its life span is as long as 25,000 hours; the cost of use and maintenance is very low; it can keep on working for a long time;

    2. The software has strong compatibility;

    3. It can even the figures, laminate set up parameters and preview the place of infrared light.

    4. The software controlling system has the interface of WINDOWS, which is compatible with files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc;

    5. It can support g-raphic file formats such as PLT, PCX, DXF, BMP etc; and directly use fonts such as SHX, TTF;

    6. It also can mark automatic code, sequence number, batch number date, bar code and two-dimensional code and so on.

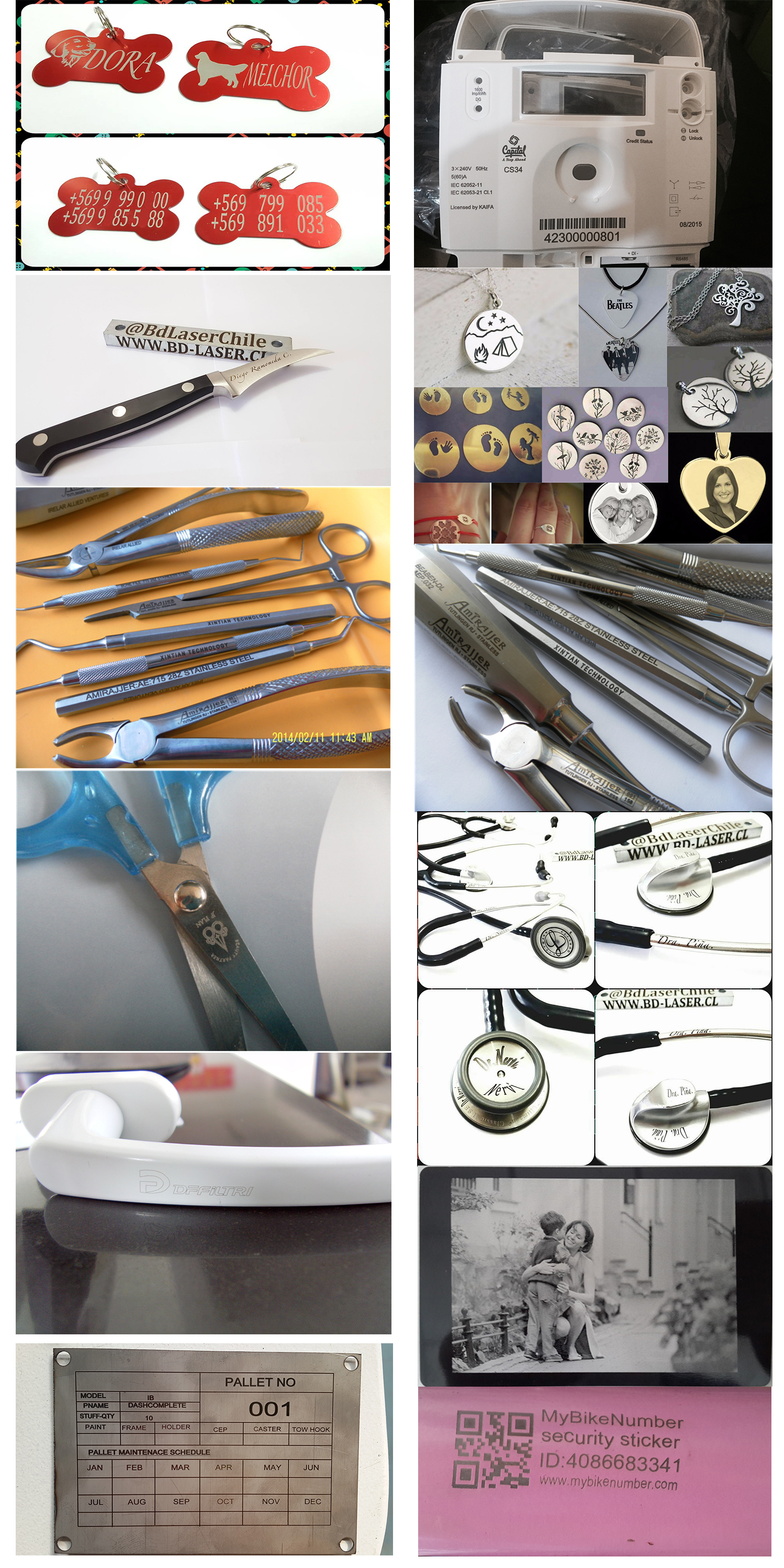

    Application:


    It is suitable for Craft gifts, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, medicine packaging, printing plate, shell plate etc. With Keyboard Laser marker,Glass laser marker, Arts laser marker, bath ware laser marker, building ceramics, beverage packaging, textile cutting, rubber products, shell plate, electronic components, leather and other industries.


    Packing Details:


    • Water-proof plastic film package with foam protection in each corner
    • Solid Seaworthy Wood Box Package with Steel Belt
    • Save space as much as possible for container loading
